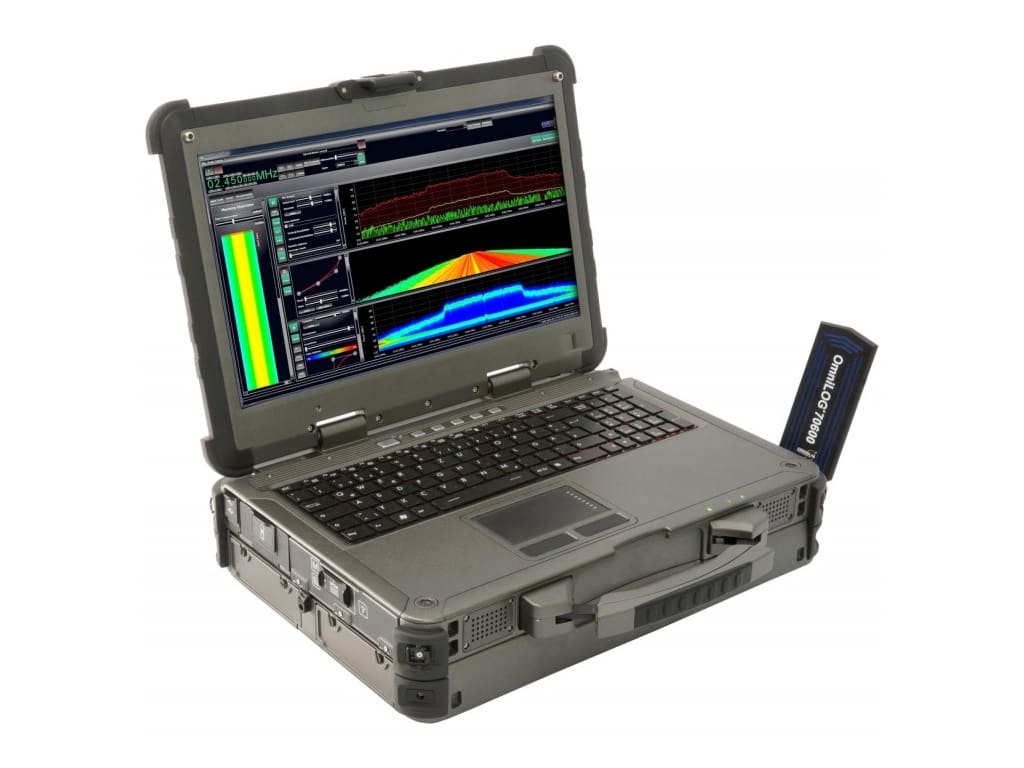

Aaronia HF-XFR PRO V5 Real-time Outdoor Spectrum Analyzer (9KHz - 20GHz)

The SPECTRAN XFR V5 PRO is a portable Real-Time Spectrum Anaylzer, designed to capture even shortest signal transmissions. It´s scanning speed and recording time is without competition, the Analyzer scans 20GHz in less than 20mS making it the world´s fastest counter-surveillance receiver.

The easy to use software is suited for detecting unknown or illegal transmissions across a wide frequency range. With an unlimited recording time (needs approx. 1GB hard disk space per minute) the XFR V5 PRO allows to store several hours of real-time data. Once recorded the entire measurement data can be re-loaded into the software. The optional I/Q Generator allows to generate the recorded signals 1:1 up to 6GHz.

Several helpful features allow a deep investigation of the Real-Time measurement or recorded data, e.g. a 3D Spectrogram view which displays a signal like newer seen before.
With this Spectrum Analyzer you can master all the challenges. It provides a powerful, extremely impact resistant Outdoor notebook and a high-end spectrum analyzer in one compact device. The XFR V5 PRO has been independently tested in accordance with MIL-STD-810G, IP65 and MIL-STD-461F.

Unmatched Performance
The powerful and ultra-stable Spectrum Analyzer is the first outdoor Spectrum Analyser with an Intel® i7 processor with 8GB RAM, full HD multi touch-screen, integrated GPS and ultra-low noise level up to - 170dBm (Hz) DANL (with pre-amps). The XFR V5 PRO is rugged and powerful at the same time.

RTSA Suite
Aaronia´s real-time Software "RTSA Suite" offers powerful analysis features. An intuitive layout combined with useful display options helps to identify, capture, demodulate and track signals up to 20GHz.

- High-resolution persistence spectrum display of the current sweep, Average, Min / Max, peak, RMS, etc.
- Marker function with unlimited number of different markers (min, max, delta, AVG, OBW..)
- Intuitive drag and drop zoom, shortkeys etc.
- The XFR V5 PRO displays several views at once (Spectrum, 3D Waterfall, Histogram, etc.)
- The window size can be adjusted freely, therefore a full utilization of the FULL HD display is possible
- Spectrogram / Waterfall View for the identification of frequency hops, measurements of pulse rate, analysis of time variant spectra and the tuning of a VCO

Package Included:
- SPECTRAN HF-XFR PRO Outdoor Spectrum Analyzer
- High accurate 0,5ppm TCXO timebase
- 15dB internal low noise preamplifier, switchable
- MCS Spectrum Analysis Software (installed)
- HyperLOG 60100 EMC directional antenna (black)
- OmniLOG 90200 radial isotropic antenna
- Pistol grip with mini tripod function
- 1m SMA cable
- SMA tool
- Rechargeable battery (installed)
- Battery charger
- English manual (on CD)
