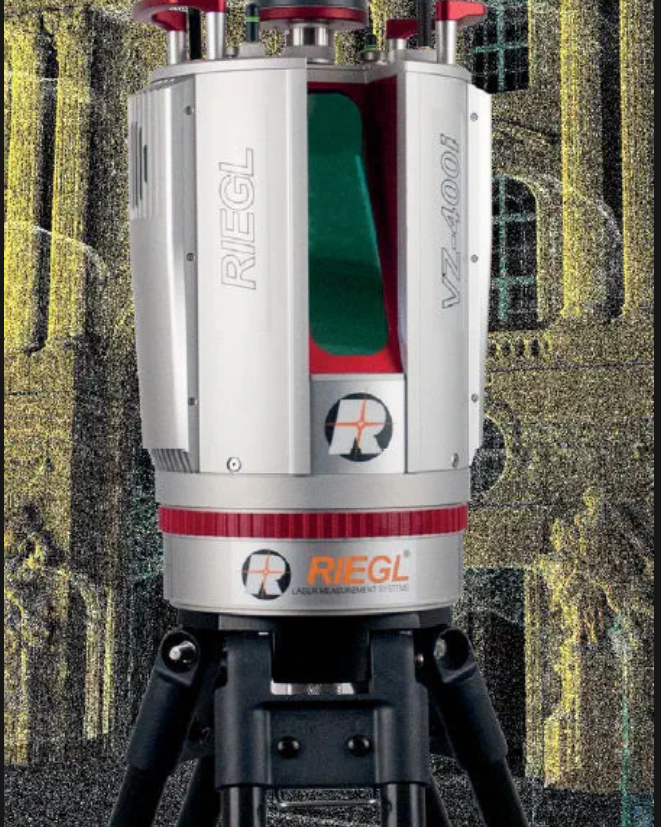

The RIEGL VZ-400i is a cutting-edge 3D Laser Scanning System which combines a future-oriented, innovative new processing architecture and internet connectivity with RIEGL’s latest waveform processing LiDAR technology.This real-time data flow is enabled through dual processing platforms: a dedicated processing system for simulta-neous acquisition of scan data and image data, waveform processing and system operations, and a second processing platform which enables automatic on-board registration,geo-referencing, and analysis to be executed in parallel. The VZ-400i provides an integrated 3G/4G LTE modem, Wi-Fi, and Ethernet communications hardware.With its integrated orientation sensor (MEMS IMU, compass, and barometer) the VZ-400i’s up to 1200 kHz pulse repetition rate can be fully utilized in many environments and orientations. The system provides a high range of flexibility by supporting numerous external peripherals and accessories via its integrated USB ports and stable mounting points.

Features:
- High laser pulse repetition rate of up to 1.2 MHz
- High speed data acquisition up to 500,000 measurements/sec
- Eye safe operation at Laser Class 1
- Wide field of view, 100°x360°- Range up to 800 m
- High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing
- Automatic on-board registration-
- Simultaneous image and scan data aquisition
- User-developed apps via python software
- Cloud connectivity via Wi-Fi and 3G/4G LTE
- Integrated IMU for pose estimation and kinematic data acquistion
- Multiple target capability
- Optional waveform data output
- Integrated GNSS receiver

Package includes:
- Riegl VZ-400 laser scanner (time of flight, up to 122,000 measurements/second or 600m (1960 feet) range, 5mm accuracy, 3 mm precision
- TCP/IP Cable M12-M12, 3M
- TCP/IP Cable M12-RJ45, 0.3M
- Serial data and PPS cable to GPS Receiver, 3M
- Power Supply Cable, 2POLE/7POLE, 3M
- Adapter Cable, 1M from power supply cable to cigarette lighter plug
- Adapter Cable, 1M from 7 pole supply cable with crocodile battery pole connectors
- Tripod Adapter Plate- Riscan Pro Viewer, Acquisition & Processing Software
- Scanner Carry Case
