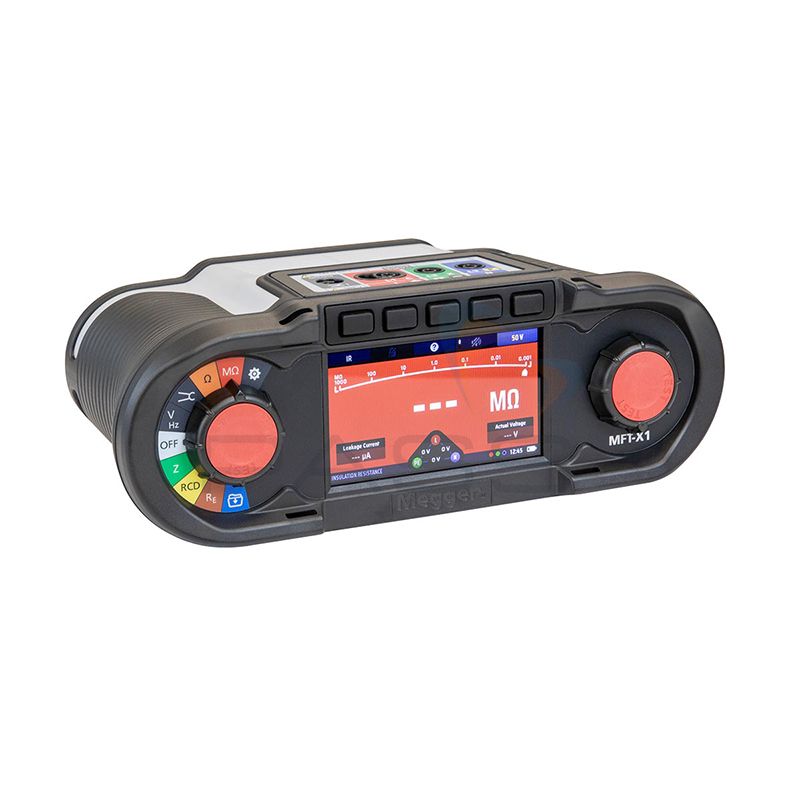

The Megger MFT-X1 Multifunction Tester is the first generation of user-upgradable MFTs, adding to Megger’s existing MFT17xx range of multifunction testers. Designed for use on all single or 3-phase domestic, commercial and industrial electrical installations, the Megger MFT-X1 boasts a wealth of features, including high resolution 0.001Ω loop testing, automatic volt-drop measurement, stabilised insulation test voltage, configurable RCD and EV auto-sequence tests and much more.

Features:
- Megger’s first platform-based multifunction installation tester
- Check single- and three-phase domestic, commercial, and industrial electrical installations
- CAT IV 300V
- Carry out detailed fault diagnostics
- Complete all commissioning and routine maintenance
- Fulfil reporting/certification requirements
- True Loop tests with a patented Confidence Meter
- Next-generation two-wire and three-wire non-trip loop testing
- High resolution 0.001Ω loop tests- Automatic volt-drop measurements
- Configurable RCD and EV auto-sequence tests
- Stabilised insulation test voltage to within +2% +2 digits
- Use with Megger’s MCC1010 Current Clamps to measure AC current between 1mA and 1000 A
- RCD configurator
- Use with Megger’s EVCA Adapter to test all known EV chargers
- High-contrast, 480 x 272px colour, TFT bonded display
- Monochrome black and white display mode
- The display changes colour depending on the test selected
- Hot keys for second-level functions are indicated at the top of the display
- Rotary dial for selecting tests
- Secondary dial for selecting options
- Easy to use even when wearing protective gloves
- Relevant information is displayed before and after every test
- Graphical circuit connection guidance for each test
- Upgradable operating system
- CertSuite compatible
- Modular battery design enables use with a Li-Ion battery pack, AA NiMH batteries, and alkaline batteries
- Fast, flexible battery changes maximise uptime
- An industry-leading MFT with eclectic testing capabilities and practical features

Package Included:
- Megger MFT-X1 Multifunction Tester
- SP5 Switched Test Probe
- Red Test Lead, Probes, Clips, and Grabbers
- Blue Test Lead, Probe, Clips, and Grabbers
- Li-Ion Battery 4400 mAh
- Li-Ion Battery Charger
- SIA 10 Mains Socket Interface Adapter (UK)
- Neck Strap
- Multipurpose Hard Base Carry Case
- Quick Start Guide
- Calibration Certificate (from Megger)
