The Thermo Scientific TVA-1000B Toxic Vapor Analyzer is capable of measuring a variety of organic vapors using FID technology, over a wide range of organic vapors can be measured, by the FID, over a wide dynamic range (0-50,000 ppm), monitoring some compounds that PID will not detect. The FID operates by breaking hydrocarbon bonds and is not limited by a high ionization potential of the molecule. In addition, the FID is unaffected by ambient CO, CO2, or humidity leading to very stable measurements.

With PID detection, the user can monitor for organic compounds and detect many inorganic compounds simultaneously. Some compounds detected by PID are ammonia, carbon disulfide, carbon tetrachloride, formaldehyde and hydrogen sulfide.

Features:
- Simultaneous FID/PID or Single FID detector(s)
- U.S. Environmental Protection Agency method 21 compliant
- Detects organic and inorganic compounds

Specifications:
- Safety Certifications FM (Class 1, Div. 1, Groups A,B,C & D Hazardous Location, Temp. Class T4)
- Datalogging Onboard
- Probe Display Bar graph & 4-digit LCD (standard); 6 lines x 20 characters (enhanced)
- Dynamic Range 0.5-2,000 ppm (PID) isobutylene; 0.5-50,000 ppm (FID) methane
- Linear Range 0.5-500 ppm (PID) isobutylene; 0.5-10,000 ppm (FID) methane
- Response Time 3.5 seconds- Minimum Detectable Limit 100 ppb benzene (PID); 300 ppb hexane (FID) (laboratory conditions)
- Alarms Low, high, STEL
- Sample Flow Rate 1000 cc (normal)
- Power Rechargeable NiCd battery
- Logging Capacity 850-27,000 points mode specific
- Fuel None required (PID); 99.99% hydrogen (FID)
- Portable Operation Time 8 hours (with reference operating conditions)
- Approximate Mass 5.8 kg (13 pounds)
- Nominal Dimensions 13.5 x 10.3 x 3.2 inches (343 x 262 x 81 mm)
- Analog Output 0-2 Vdc (non-calibrated)
- Repeatability +/- 1% (PID); +/- 2% (FID)
- Accuracy FID= 25% of reading or 2.5ppm, whichever is greater from 1.0 to 10000ppm;
- PID= 25% of reading or 2.5ppm. whichever is greater from 0.5 to 500ppm
- Auto Ranging Yes
- Diagnostics Yes

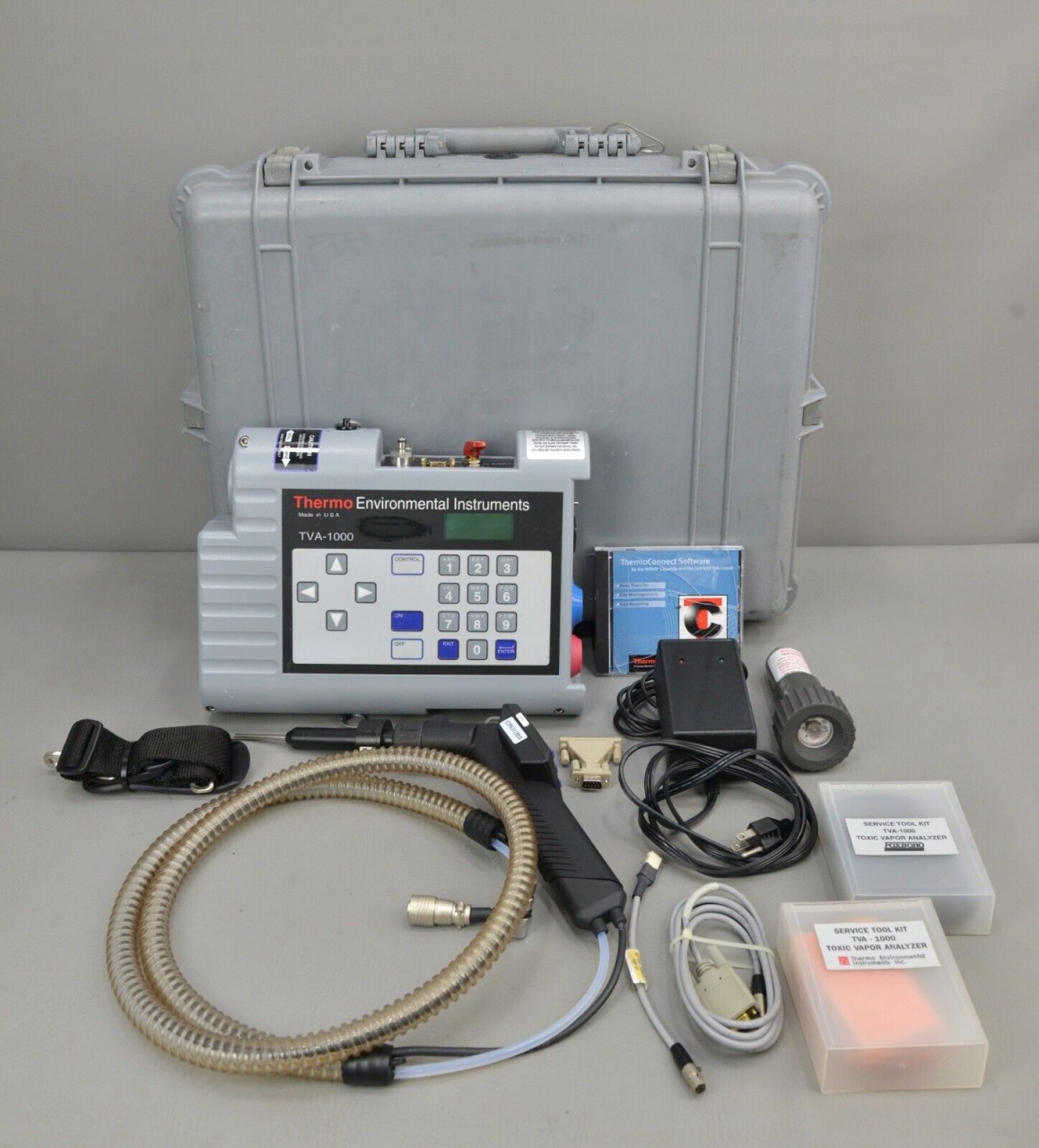

Package Included:
- Thermo Scientific TVA-1000B-81020 Toxic Vapor Analyzer
- Thermo Scientific TVA1000 Remote
- Thermo Hydrogen Tank
- Thermo Scientific Probe
- Thermo Scientific Vaper Analyzer - 9 Pin - 25 Pin Adapter
- Thermo Service Tool Kit
- Thermo Connect Software
- AC Adapter/Charger
- Strap For Unit
- (2) Hard Copy User Manual
- Hard Carrying Case
